Wired Doorbell Pro PoE (3rd Gen) – Doorbell Camera

Our most advanced wired doorbell gets a sleek new design featuring breakthrough 4K clarity, cutting-edge security features and the reliable, hardwired connection of Power over Ethernet. It’s our iconic doorbell completely reimagined for the modern home.

Retinal 4K with up to 10x Enhanced Zoom — Catch detail even at a distance with wide-angle 4K video.

Live View & Two-Way Talk with Audio+ — See, hear, and speak to who’s there in real time with our enhanced sound quality.

3D Motion Detection — Receive more precise alerts with radar-powered motion detection.

Low-Light Sight — Get a full-color view in the near-dark.

Video Descriptions — Know what's up at a glance with notifications that describe exactly what's happening when motion is detected.¹

View

Tech Specs – Wired Doorbell Pro (3rd Gen), Power over Ethernet

Size and Color

Dimensions

Doorbell: 1.95 in x 1.02 in x 5.45 in (4.95 cm x 2.6 cm x 13.835 cm)

Adapter: 2.7 in x 1.6 in x 1.1 in (6.8 cm x 4.1 cm x 2.7 cm) with 10 ft (304.8 cm) USB-C cable

Available Colors

Deep Silver

Features

Video

4K video resolution, Low-Light Sight with Adaptive Night Vision, up to 10x Enhanced Zoom

Motion Detection

3D Motion Detection with Customizable Motion Zones

Field of View

140° Horizontal x 140° Vertical, 1:1 Aspect Ratio

Audio

Two-way talk with Audio+

Power and Connectivity

Power

Designer Brand POE+ Adapter, standard doorbell system, Designer Brand plug-in adapter (not included), or Designer Brand hardwired transformer (not included), with 16 to 24VAC, 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.
No halogen or garden-lighting transformers.

PoE+ power source must meet IEEE 802.3at (PoE+) standard.

Internet Requirements

A minimum average upload speed of 15 Mbps is recommended for Designer Brand 4K devices.

Connectivity

Ethernet connection or Wifi 6 (802.11ax), dual-band 2.4GHz/5GHz

Installation

Estimated Install Time

~1 to 2 hours

Operating Conditions

Doorbell: -4°F to 120°F (-20°C to 48.5°C), Weather Resistant.

Prolonged exposure to direct sunlight and other conditions may increase the temperature of your device and affect performance.

PoE+ Adapter: Must be installed indoors

Setup Requirement

Requires a PoE+ power source (IEEE 802.3at) such as a PoE+ switch or injector or standard doorbell system with with 16 to 24VAC, 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.

Run the included 10-foot Connection Cable through your interior walls and connect it to the Designer Brand PoE+ Adapter, which must be installed indoors.

General

Box Includes

Wired Doorbell Pro (PoE)

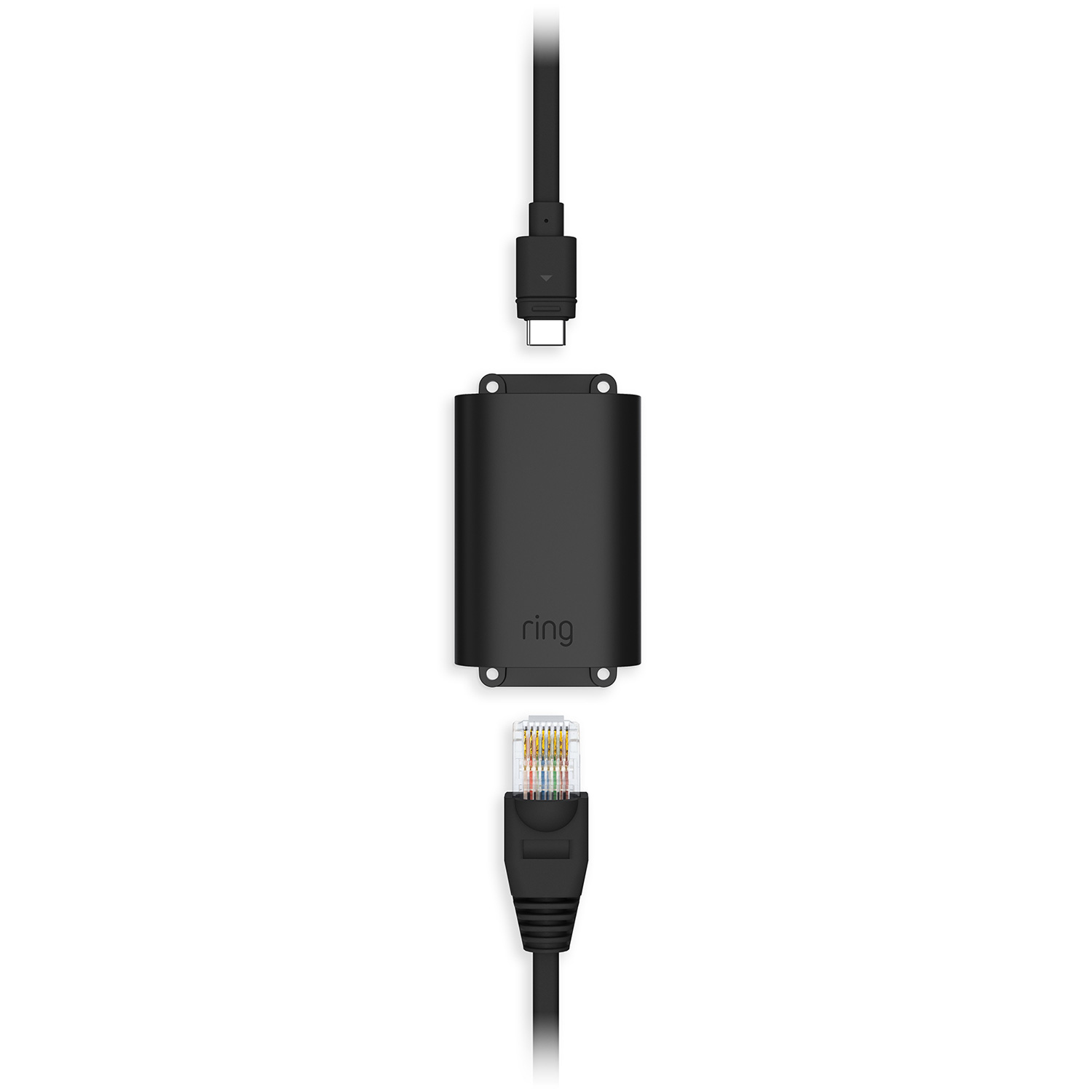

PoE+ (Power-over-Ethernet) Adapter
10ft Connection Cable
Spacer
Corner Kit
Mounting Plate
Installation Tools and Hardware
Setup Guide
Security Sticker

Warranty

One-Year Limited Warranty

Security

Software Security Update

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Designer Brand device, visit Software Security Updates in Designer Brand Control Center for information specific to your device.
