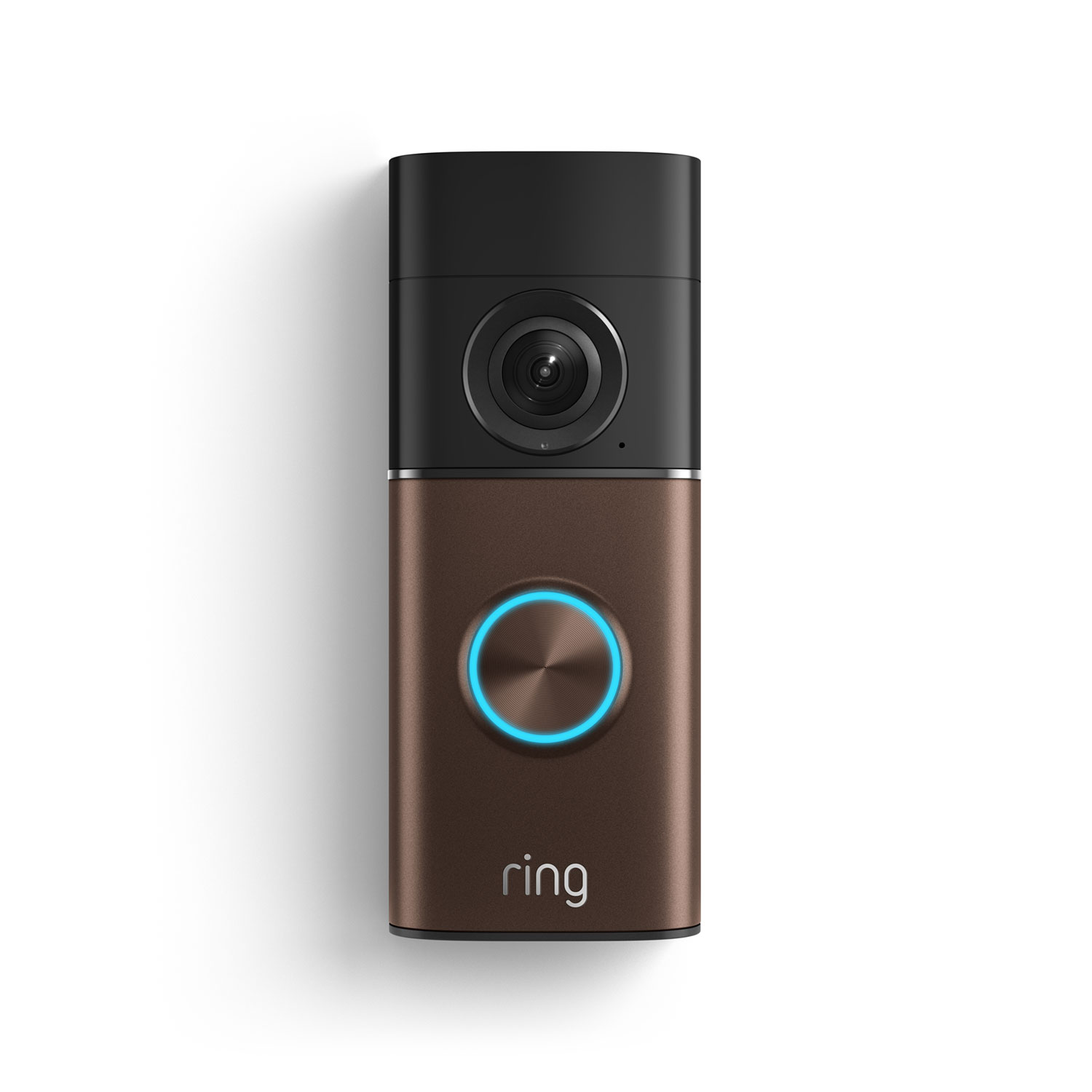

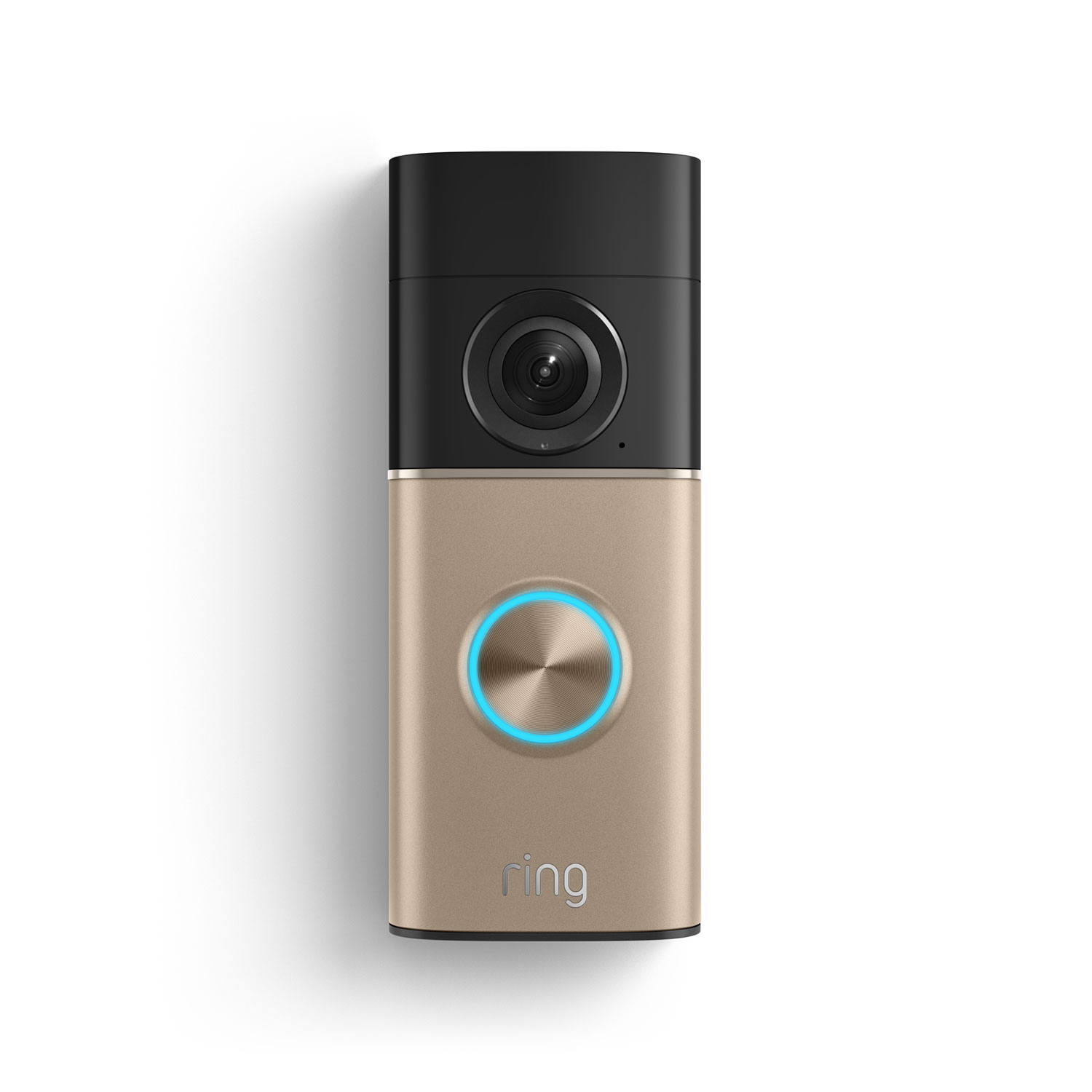

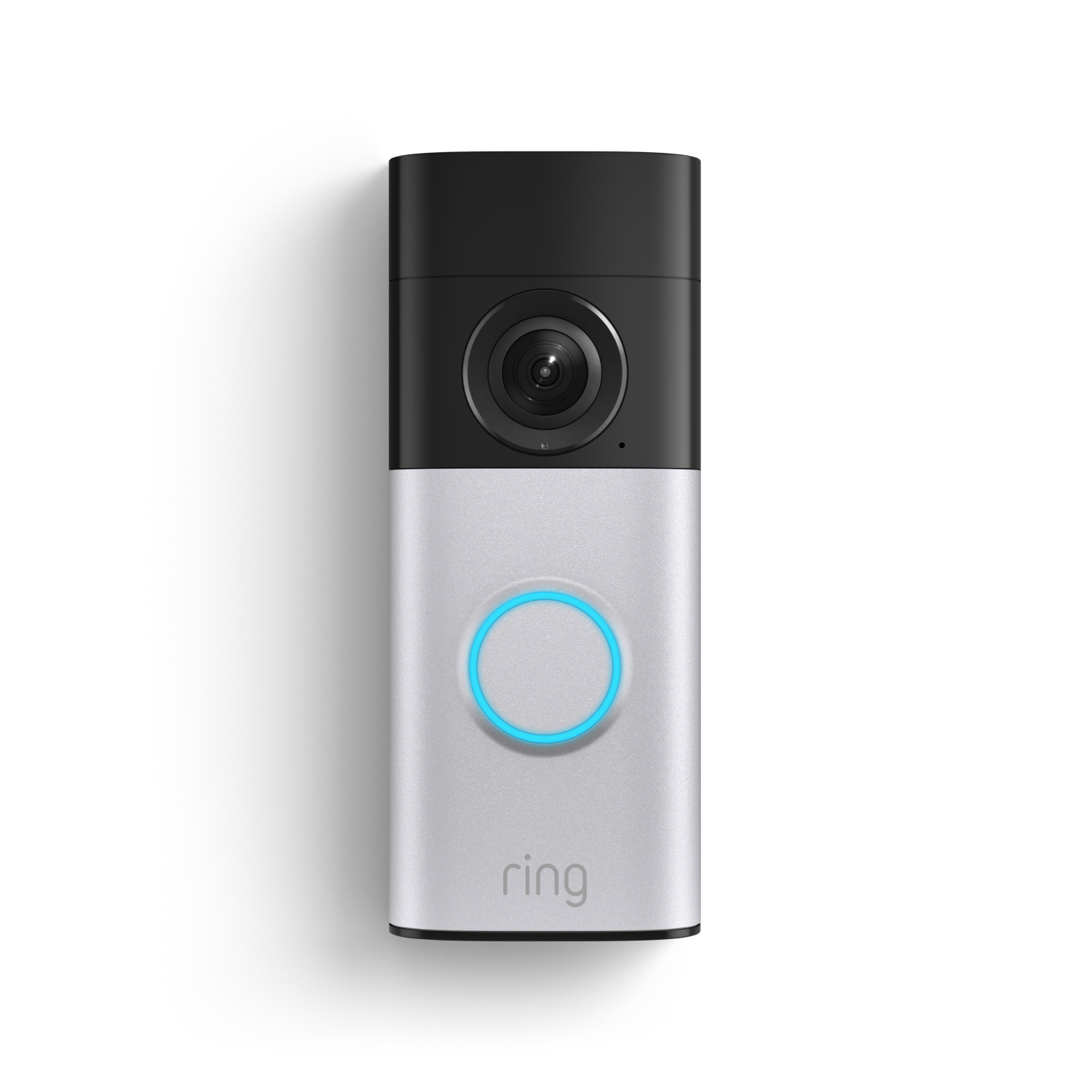

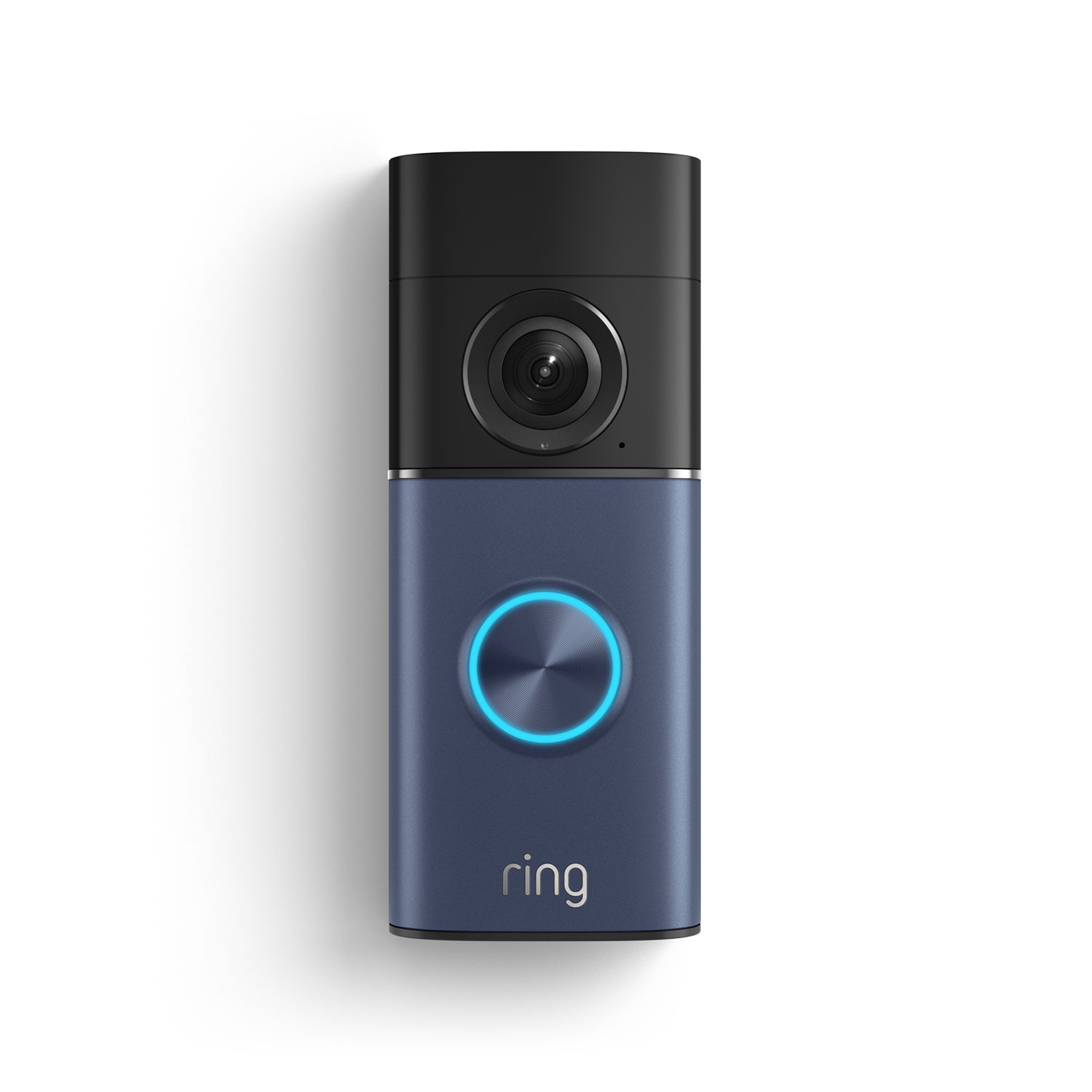

Wired Doorbell Plus (2nd Gen) – Doorbell Camera

The next advancement in front door protection comes with enhanced video quality, advanced security features, and a reimagined design that builds upon years of innovation.

Retinal 2K — Crisp, true-to-life video that brings your property to your phone like no one else.

Live View & Two-Way Talk — See, hear, and speak in real time.

3D Motion Detection — Receive more precise alerts with radar-powered motion detection.

Low-Light Sight — Get a full-color view in the near dark.

Video Descriptions — Know what's up at a glance with notifications that describe exactly what's happening when motion is detected.¹

View

Tech Specs – Wired Doorbell Plus (2nd Gen)

Size and Color

Dimensions

2.11 in x 1.18 in (without wall mount) x 5.22 in (5.36 cm x 3.00 cm (without wall mount) x 13.26 cm)

Available Colors

Nickel Silver

Features

Video

2K video, Low-Light Sight with Adaptive Night Vision

Motion Detection

3D Motion Detection with Customizable Motion Zones

Field of View

140° Horizontal x 140° Vertical, 1:1 Aspect Ratio

Audio

Two-way talk

Power and Connectivity

Power

Hardwired

Standard doorbell system, Designer Brand plug-in adapter (not included), or Designer Brand hardwired transformer (not included), with 16 or 24VAC, 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.
No halogen or garden-lighting transformers.

Internet Requirements

A minimum upload speed of 10 Mbps is recommended for Designer Brand 2K devices. Video resolution may vary depending on internet bandwidth.

Connectivity

Wifi 6 (802.11ax), dual-band 2.4GHz/5GHz

Installation

Estimated Installation Time

~15 min

Operating Conditions

-4°F to 120°F (-20°C to 48.5°C), Weather Resistant.

Prolonged exposure to direct sunlight and other conditions may increase the temperature of your device and affect performance.

Setup Requirement

Standard doorbell system, Designer Brand plug-in adapter (not included), or Designer Brand hardwired transformer (not included), with 16 or 24VAC, 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.

General

Box Includes

Wired Doorbell Plus
Chime Kit Mini
Corner Kit
Mounting Plate
Installation Tools and Hardware
Setup Guide
Security Sticker

Warranty

One-Year Limited Warranty

Security

Software Security Update

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Designer Brand device, visit Software Security Updates in Designer Brand Control Center for information specific to your device.
