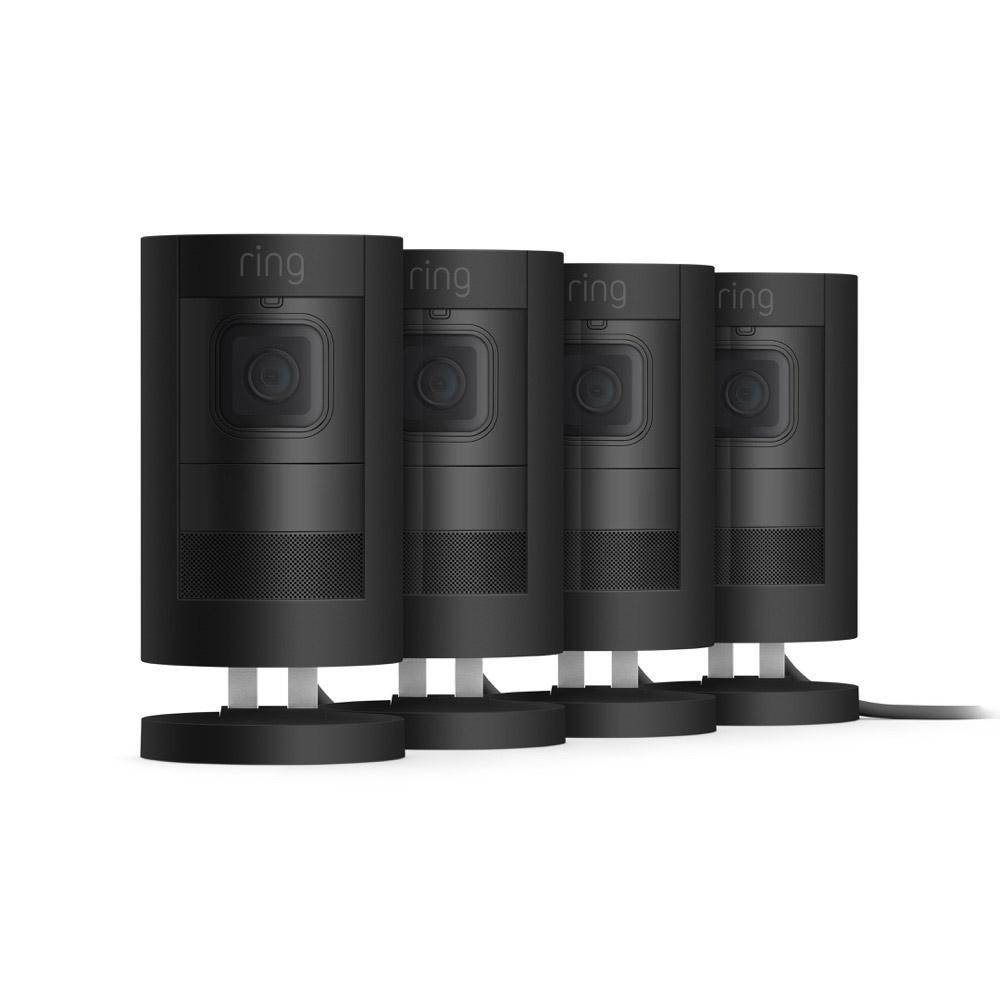

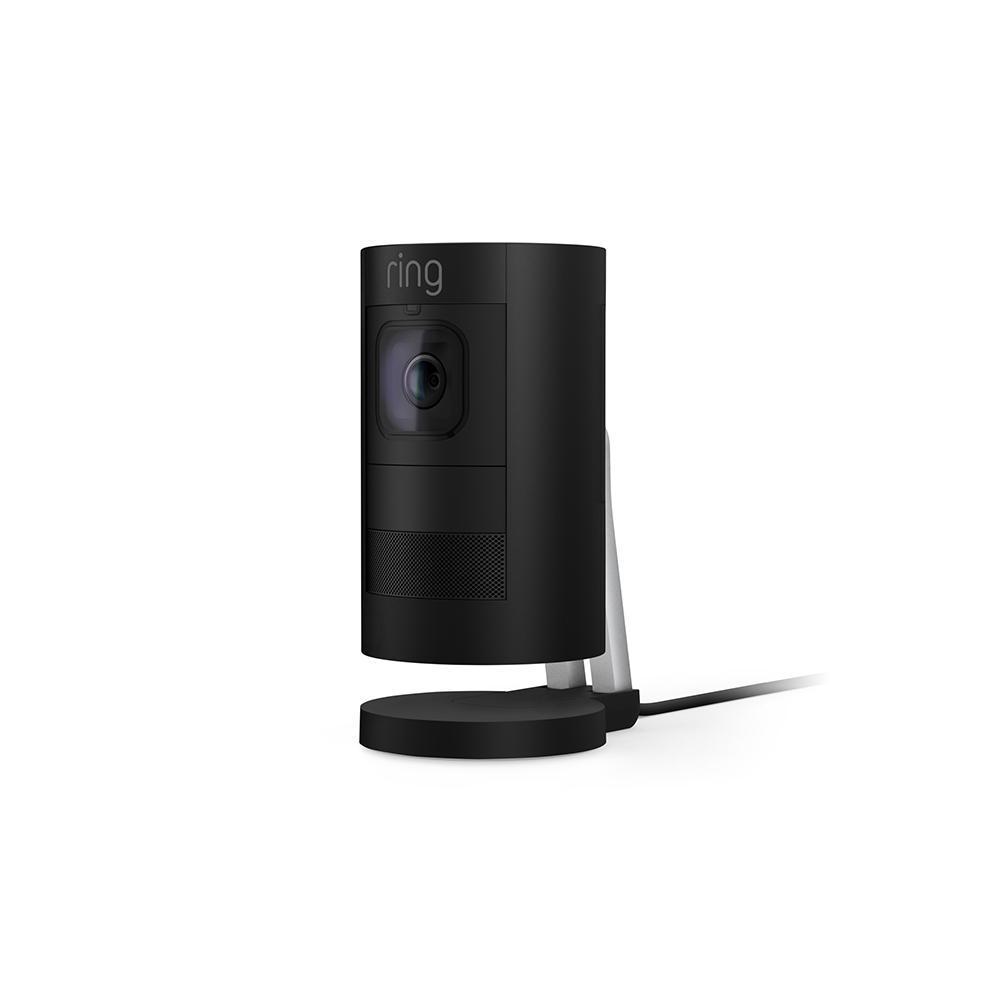

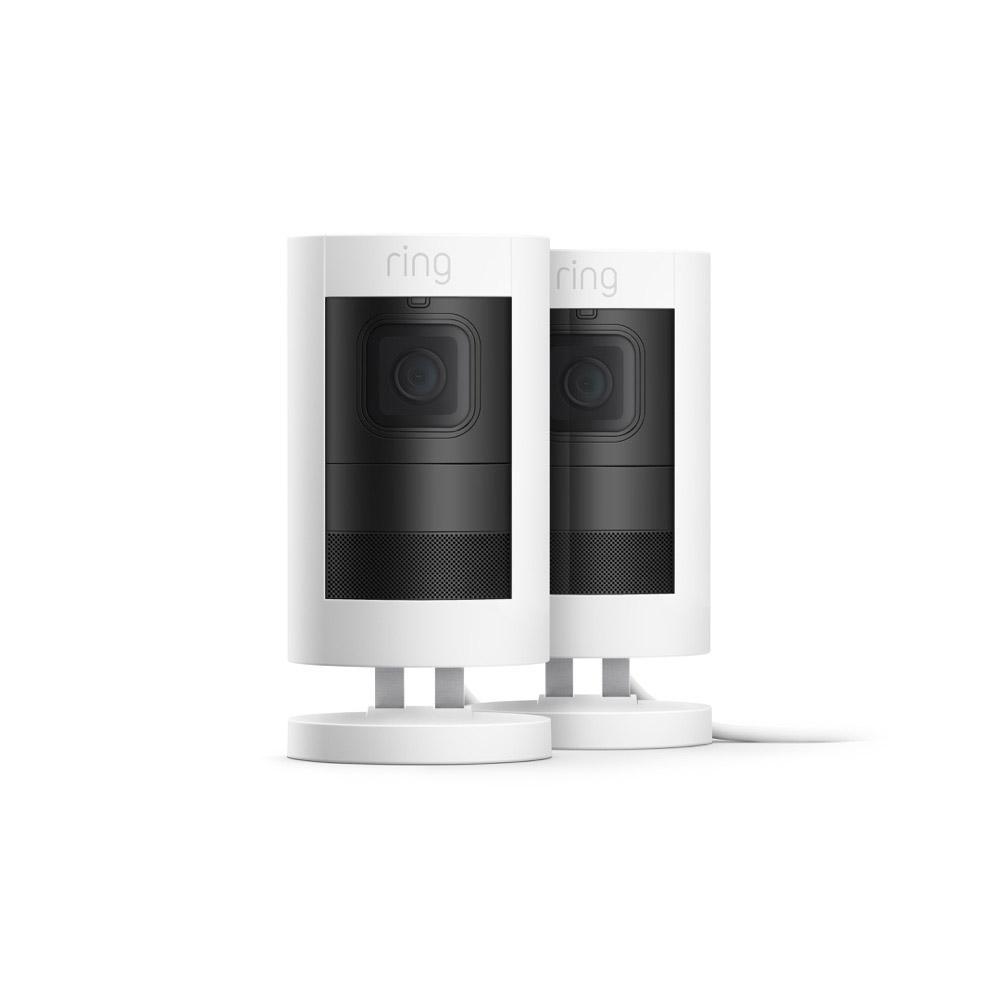

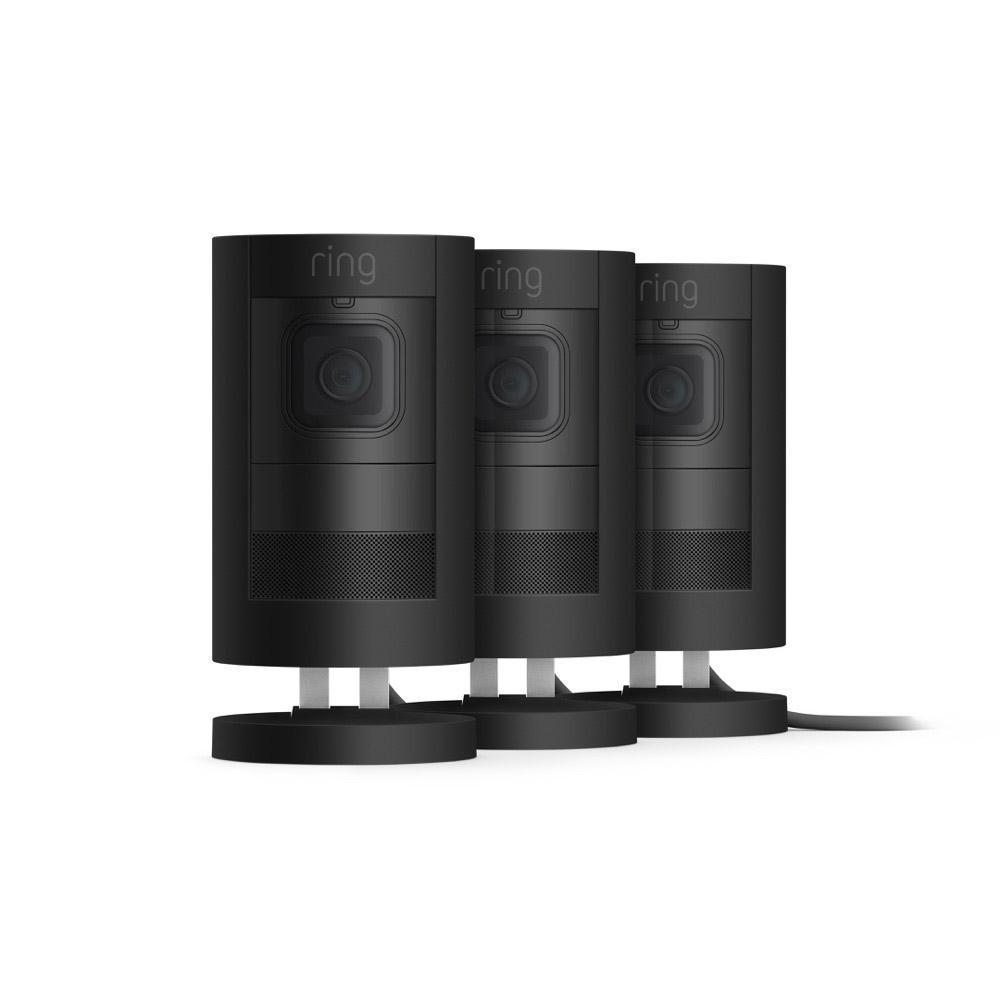

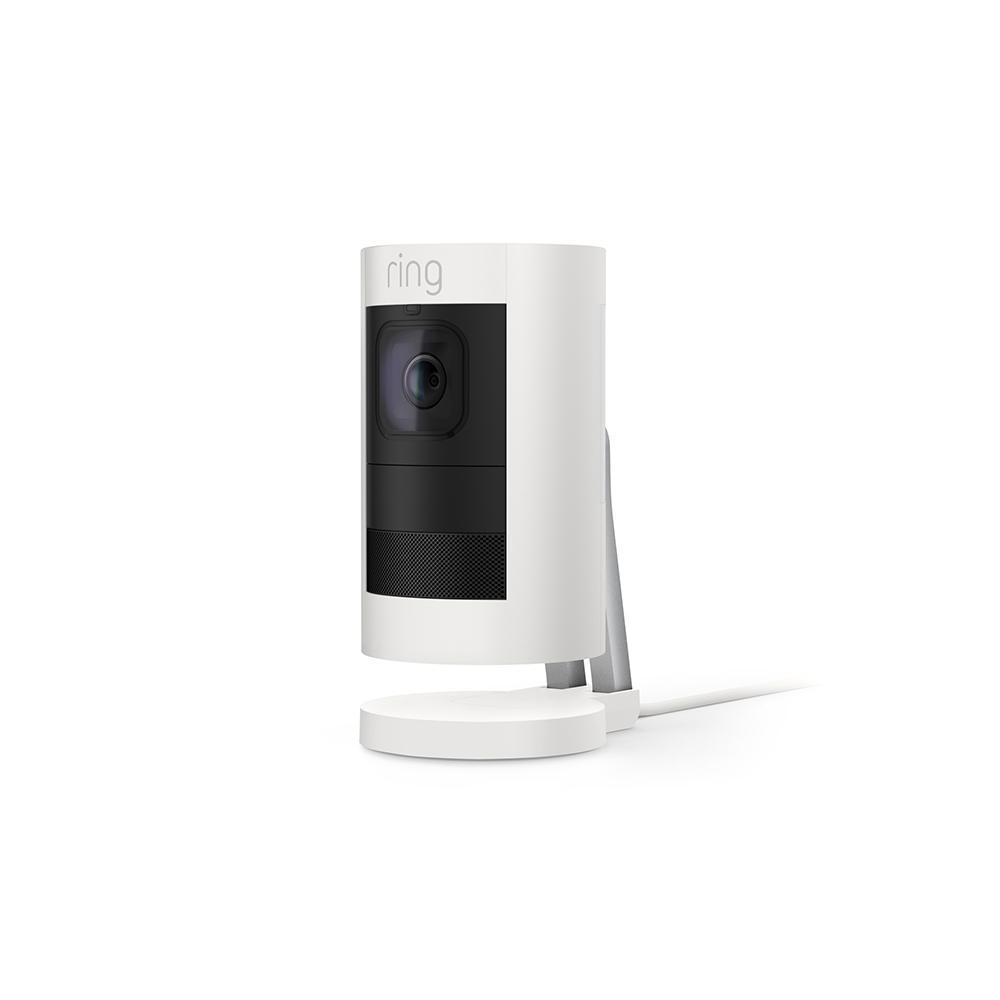

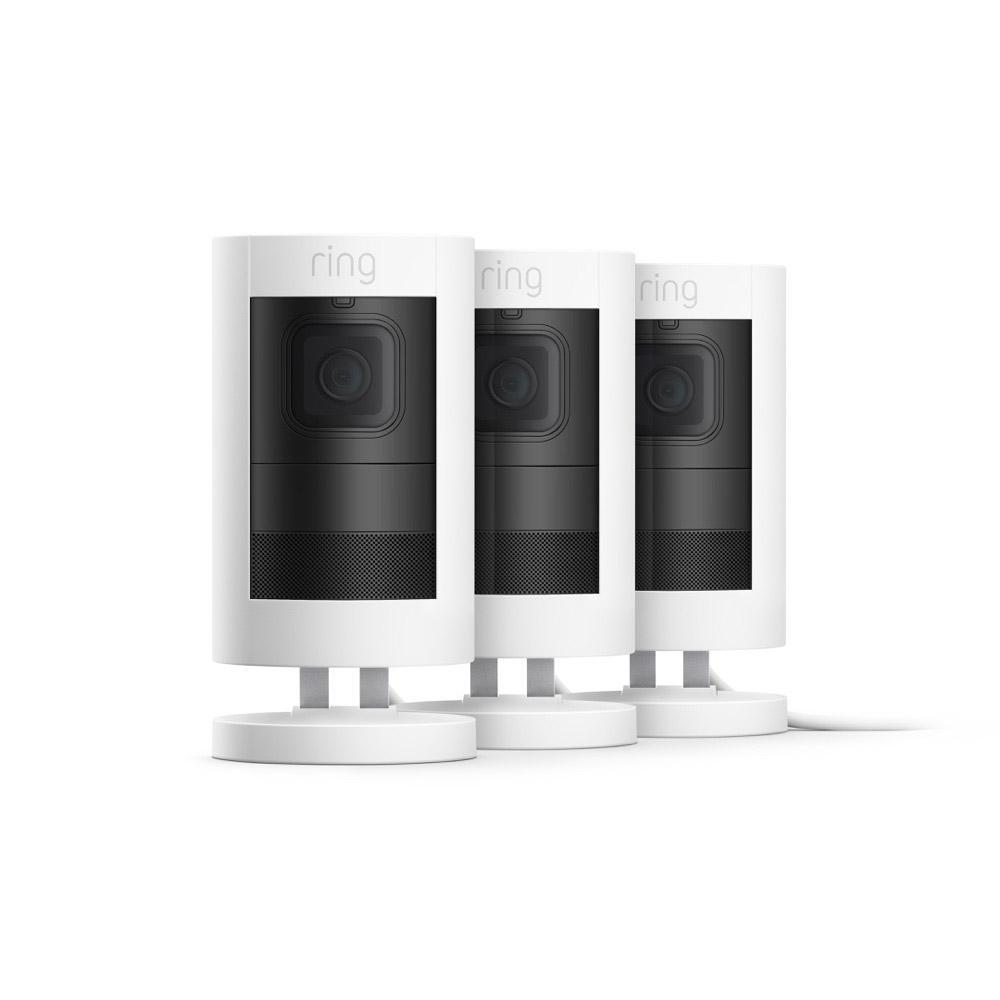

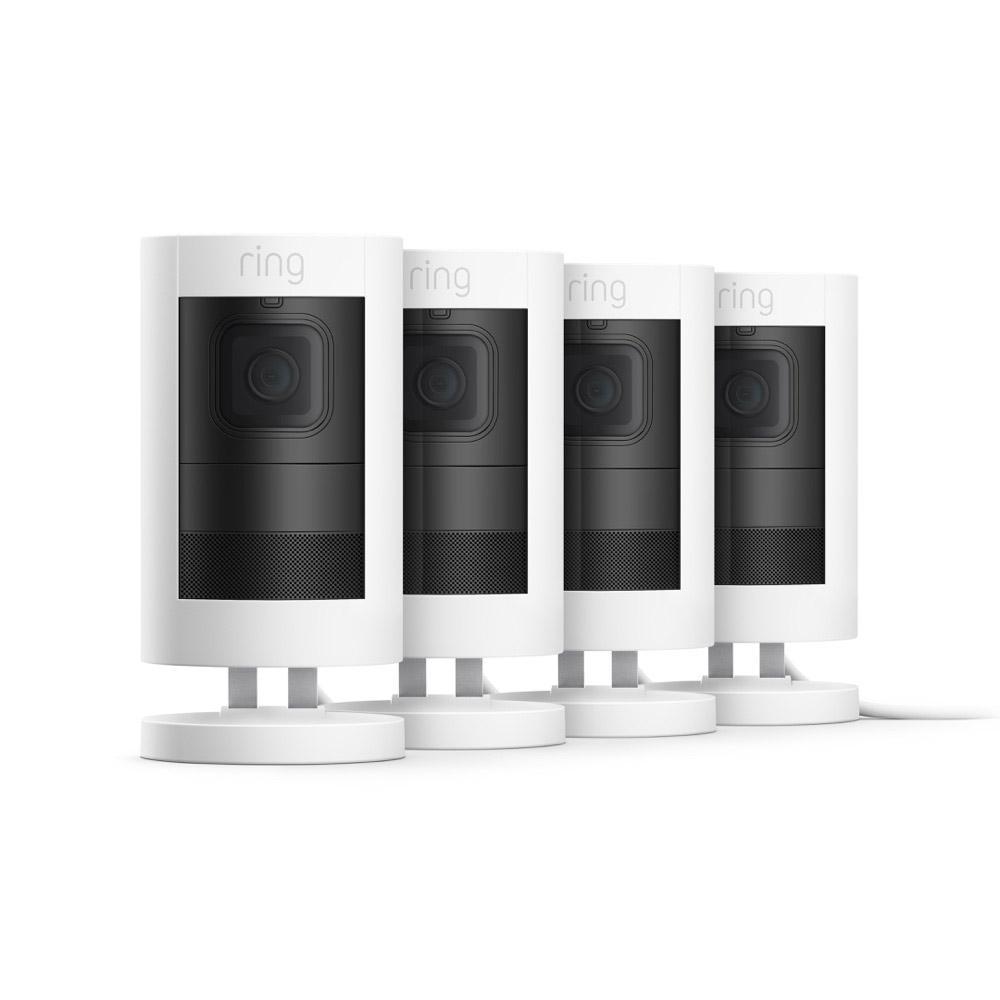

Stick Up Cam Elite | Indoor & Outdoor Cameras

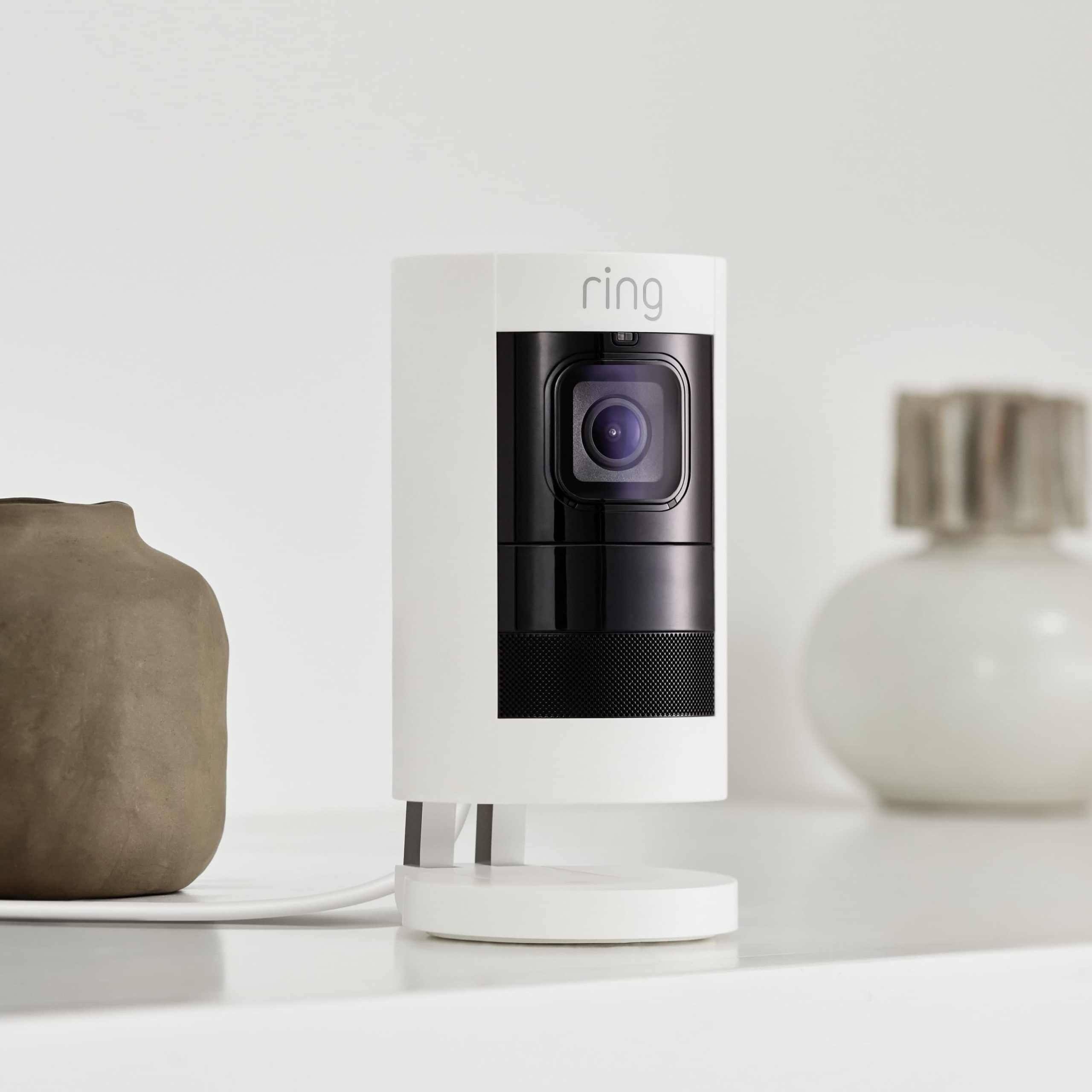

Enjoy nonstop power with the versatile Stick Up Cam Elite. Connect it to your router with the included PoE adapter so you’ll never have to worry about Wi-Fi dead zones or charging a battery. Put it on a flat surface to move it when you need to or mount it to a wall or ceiling for permanent placement. It’s a flexible solution that adds peace of mind anywhere you need it – inside or out.

Professional Installer?

Tech Specs

Size and Color

Dimensions

Camera (without stand): 60 mm (3.82 in) x 98 mm (2.36 in) x 60 mm (2.36 in)PoE Adapter: 106 mm (4.17 in) x 40 mm (1.57 in) x 27 mm (1.1 in)

Available Colors

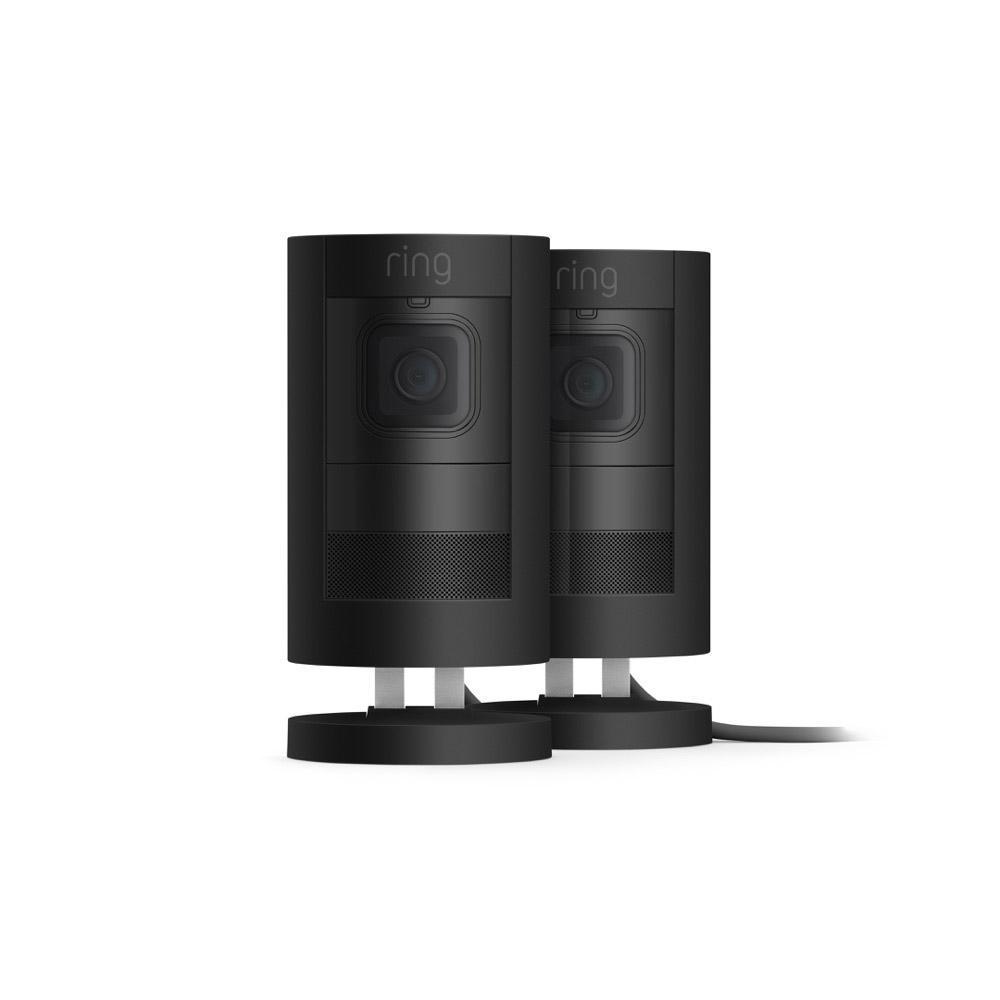

Black, White

Features

Video

1080p HD, Live View, Color Night Vision

Motion Detection

Advanced Motion Detection, Customizable Motion Zones

Field of View

150° horizontal, 85° vertical

Audio

Two way audio with noise cancellation

Power and Connectivity

Power

Power over Ethernet with included PoE Adapter (with power supply) or other IEEE 802.3af (PoE) or 802.3at (PoE+) source
Power Input: 100 to 240 Volts AC (AC adapter included)
Power Output: 56 Volts DC, 15.4 watts

Connectivity

Ethernet or 802.11 b/g/n Wi-Fi connection @ 2.4GHz or 5GHz

Installation

Operating Conditions

Camera: -5°F to 120°F (-20.5°C to 48.5°C), Weather Resistant

PoE Adapter

-4°F to 122°F (-20°C to 50°C), Indoor Only

Mounting Base

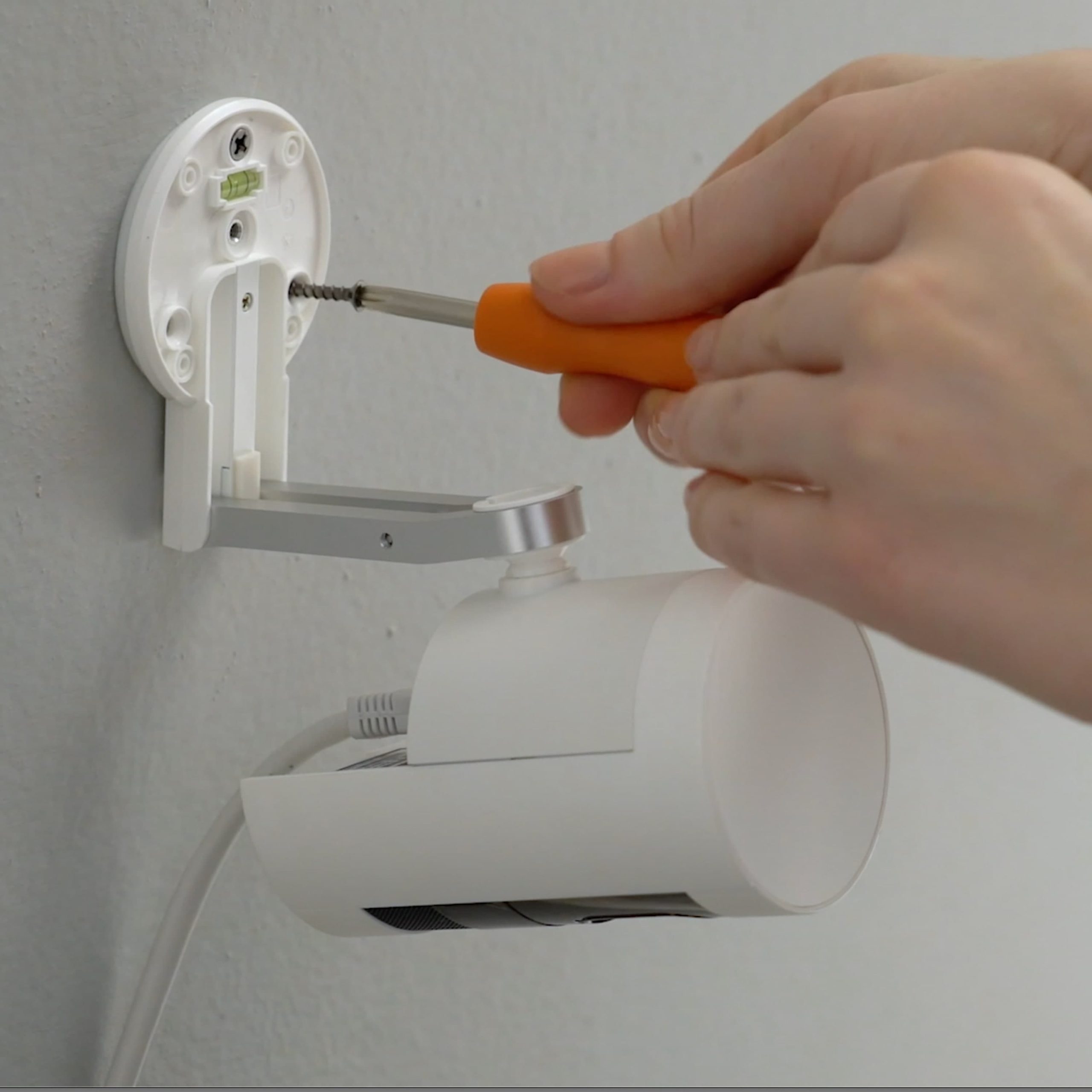

Integrated mounting base/stand with adjustable angle. Can sit freestanding, mount to a wall, or mount to a ceiling

Setup Requirements

Power outlet (for PoE Adapter) and Ethernet port with PoE

General

Box Includes

Stick Up Cam Elite
Base Cover
Base Pad
PoE Adapter with Power Supply
Ethernet Cable
User Manual
Security Sticker
Installation Tools and Hardware

Warranty

One-year limited warranty

Model

2nd Generation

Security

Software Security Update

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Designer Brand device, visit Software Security Updates in Designer Brand Control Center for information specific to your device.
