Designer Brand Alarm Pro

¹

For total peace of mind, add

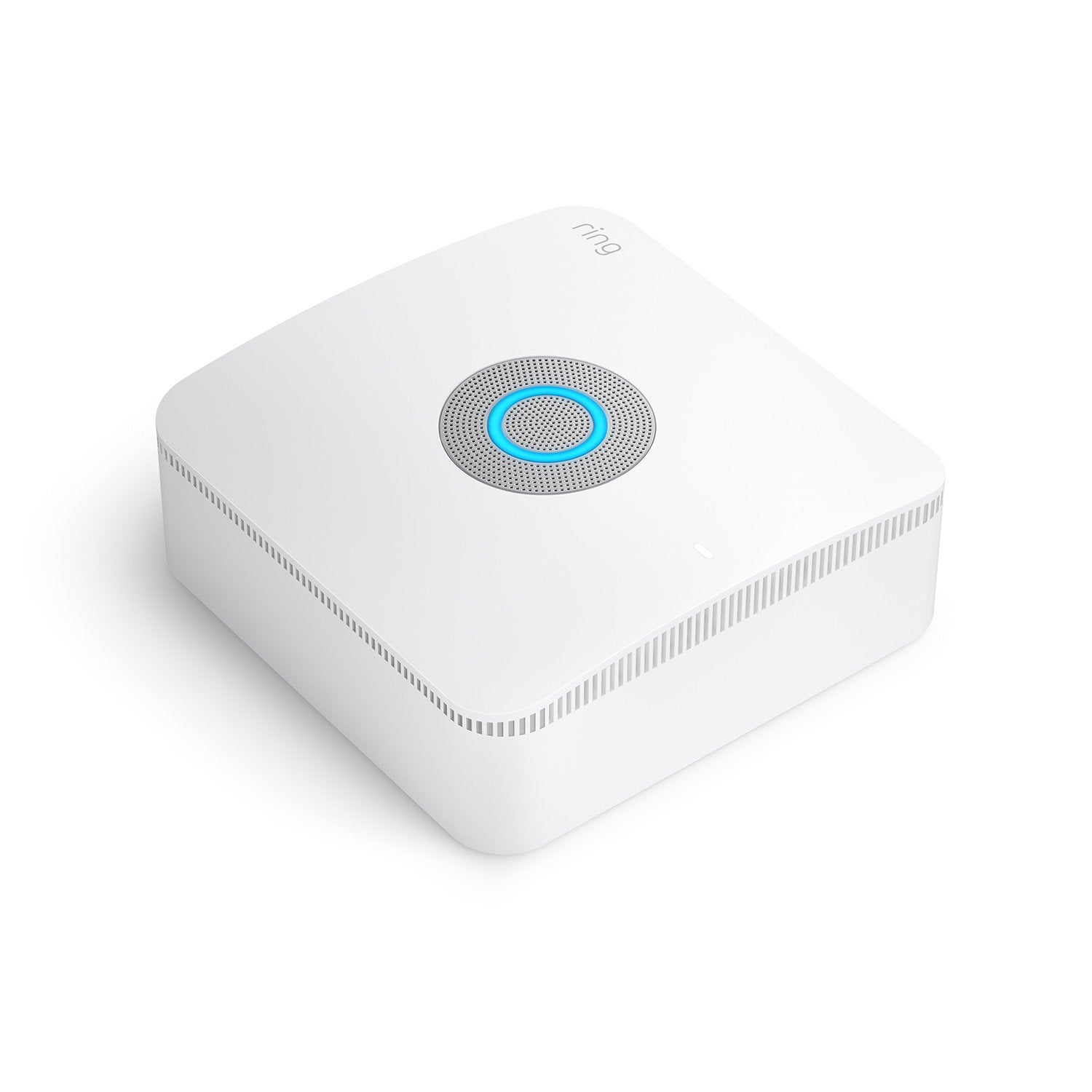

Tech Specs – Alarm Pro Base Station

Size and Color

Dimensions

6.75 in. x 6.75 in. x 2.72 in.

Color

White

Power and Connectivity

Power

Adaptor included 100-240V AC ~50-60Hz. Output : 12V DC – 3A (max)

Connectivity

Ethernet, Bluetooth for set-up, Z-wave, WiFi, WiFi-6 capable, LTE, 902- 928 MHz Radio

Battery

Internal Rechargeable Lithium Ion Backup Battery

Battery Life

Internal battery backup lasts up to 24 hours in Low Power Mode

Disclaimer: In Low Power Mode, only some security features, including Alarm Cellular Backup, are available. Battery life is dependent on device settings, usage, environment, and other factors.

Installation

Operating Conditions

Indoor: 32°F to 104°F (0°C to 40°C)

Installation

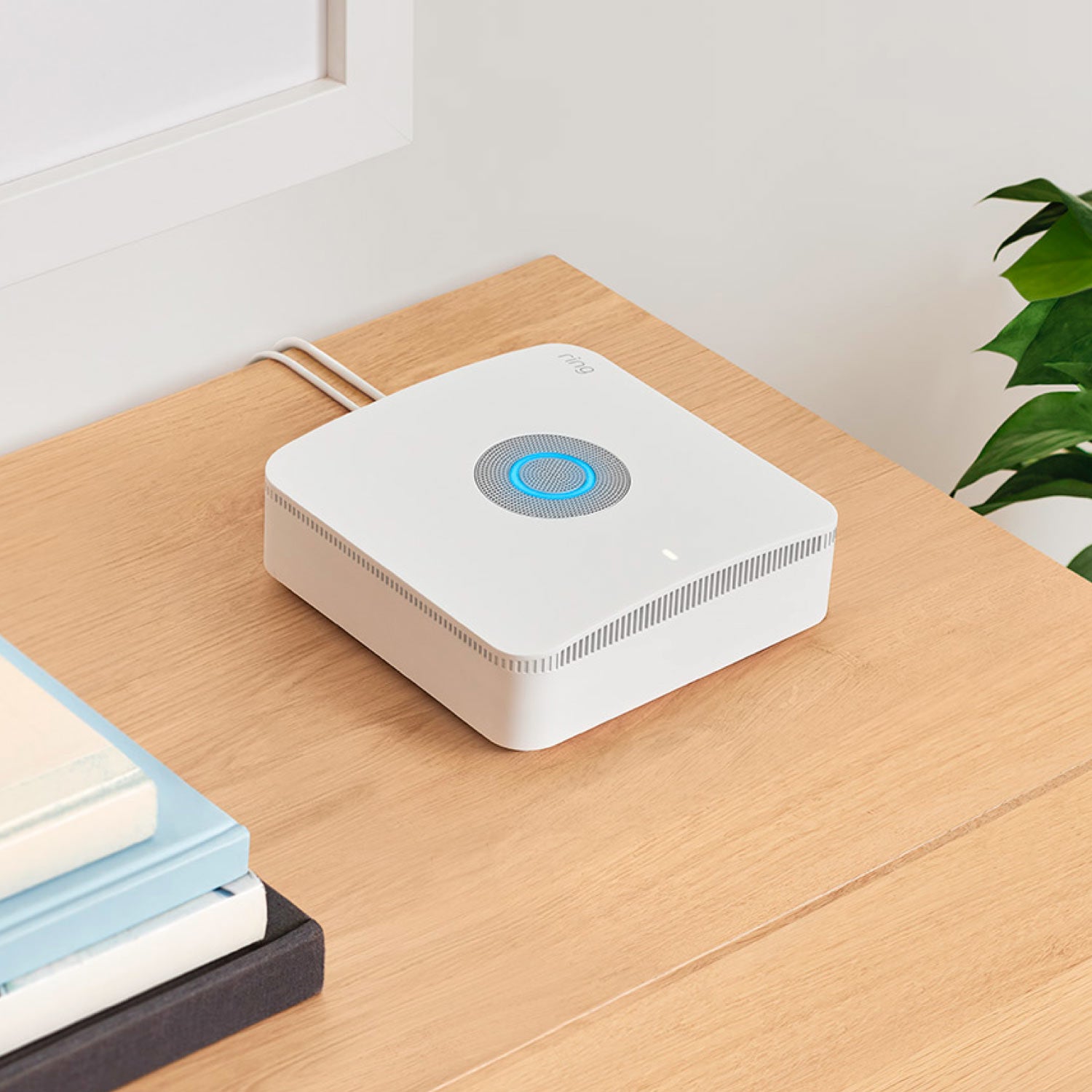

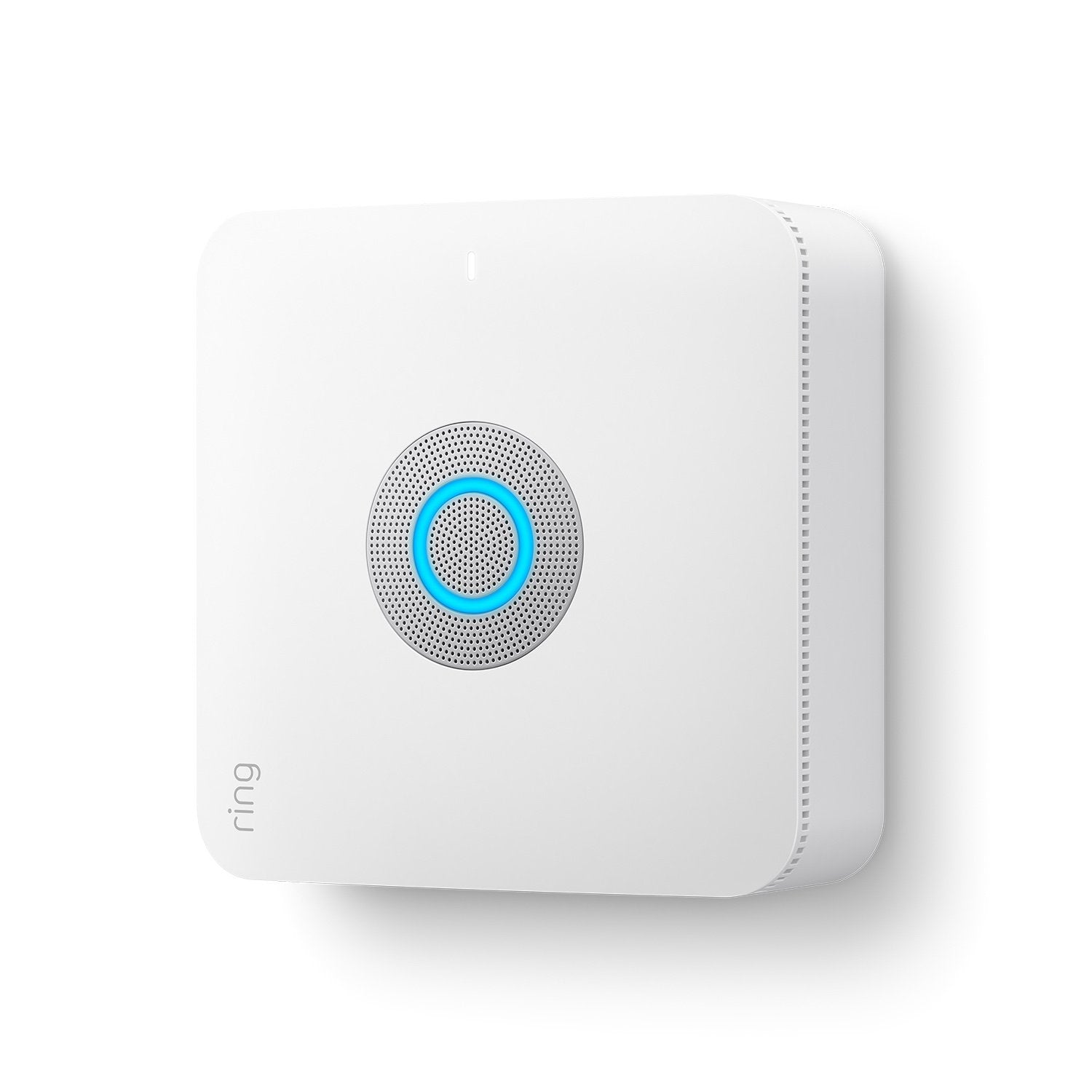

Table top or wall mounted

Setup Requirements

Existing Internet service or 24/7 Cellular Backup Internet (compatible Designer Brand Protect Plan required, sold separately), Smartphone. Alarm Pro is designed to be used as your primary router and must be directly connected to your modem, replacing your existing network.

General

Warranty

One-year limited warranty

Siren

104 Decibel Siren measured at 1 ft

Wifi

Speed

Supports speeds up to 900Mbps

Disclaimer: Internet connection speeds and availability depend on your internet service provider. Maximum wireless signal rates are derived from IEEE 802.11 standard. Specifications assume wired Ethernet connection. Experienced speeds may vary based on network configuration. Coverage estimates are based on normal use conditions. Actual range and performance can vary due to factors such as interference, connected devices, device usage, building materials, and obstructions. Specifications are based on use of a Wi-Fi 6 or later generation client device.

Coverage

Up to 1500 Sq. Ft. coverage (add extra eero 6 extenders for additional coverage)

Disclaimer: eero mesh wifi router provides up to 1500 sq. ft. of coverage. Adding eero extenders expands coverage. Actual range and performance can vary, including due to factors such as interference, device usage, building materials and obstructions and internet connection speed. Coverage estimates are based on normal use conditions, and are a configuration reference, not a performance guarantee. Designer Brand Alarm Pro is designed to be used as your primary router. It must be directly connected to your modem as the Internet gateway. Don’t set up Designer Brand Alarm Pro on an existing wifi network.

Radio Frequency

Dual-band, 2.4 GHz / 5 GHz radio. Supports 75+ connected devices.

Security

Software Security Update

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Designer Brand device, visit Software Security Updates in Designer Brand Control Center for information specific to your device.
