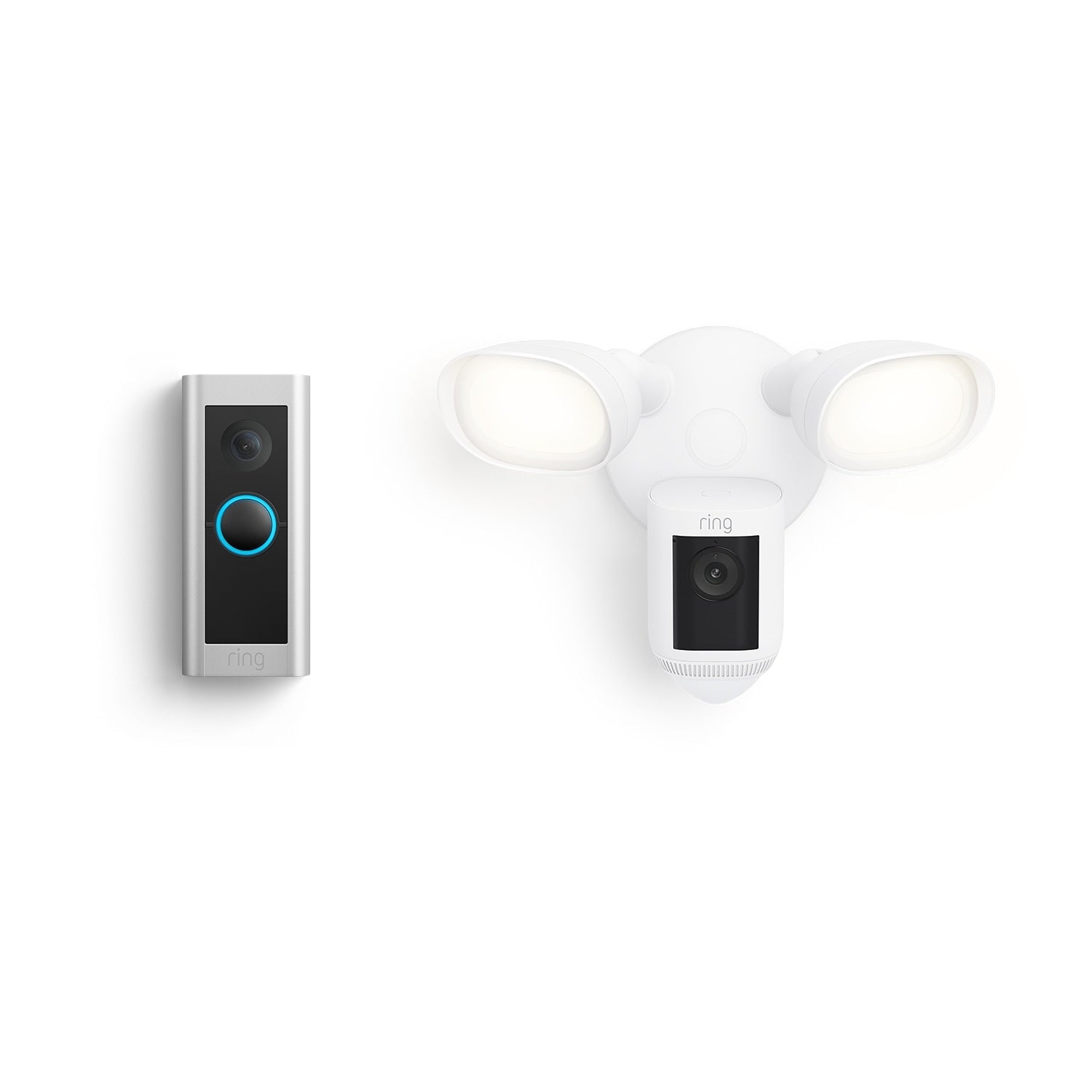

Connected Deluxe Kit | Security Bundles

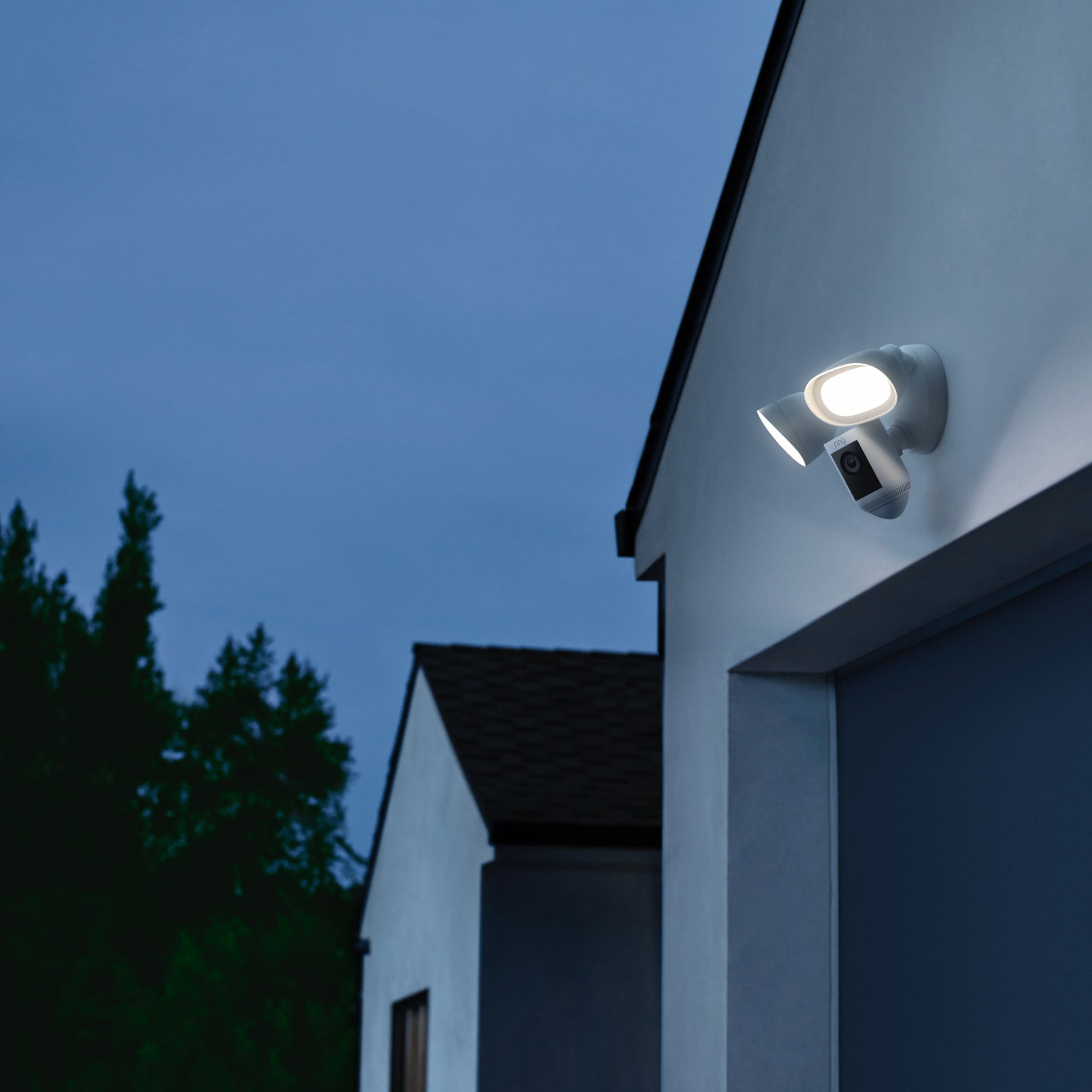

Our most advanced motion detection to take staying connected to home to the next level ideal for keeping tabs on the front door, and in one larger outdoor area. Get advanced security at your front door and detect motion with pinpoint accuracy with the radar-powered 3D Motion Detection of Wired Doorbell Pro (Video Doorbell Pro 2). Then, stay on top of every movement with Floodlight Cam Wired Pro, equipped with Retinal 2K video¹ and 3D Motion Detection.

This item includes:

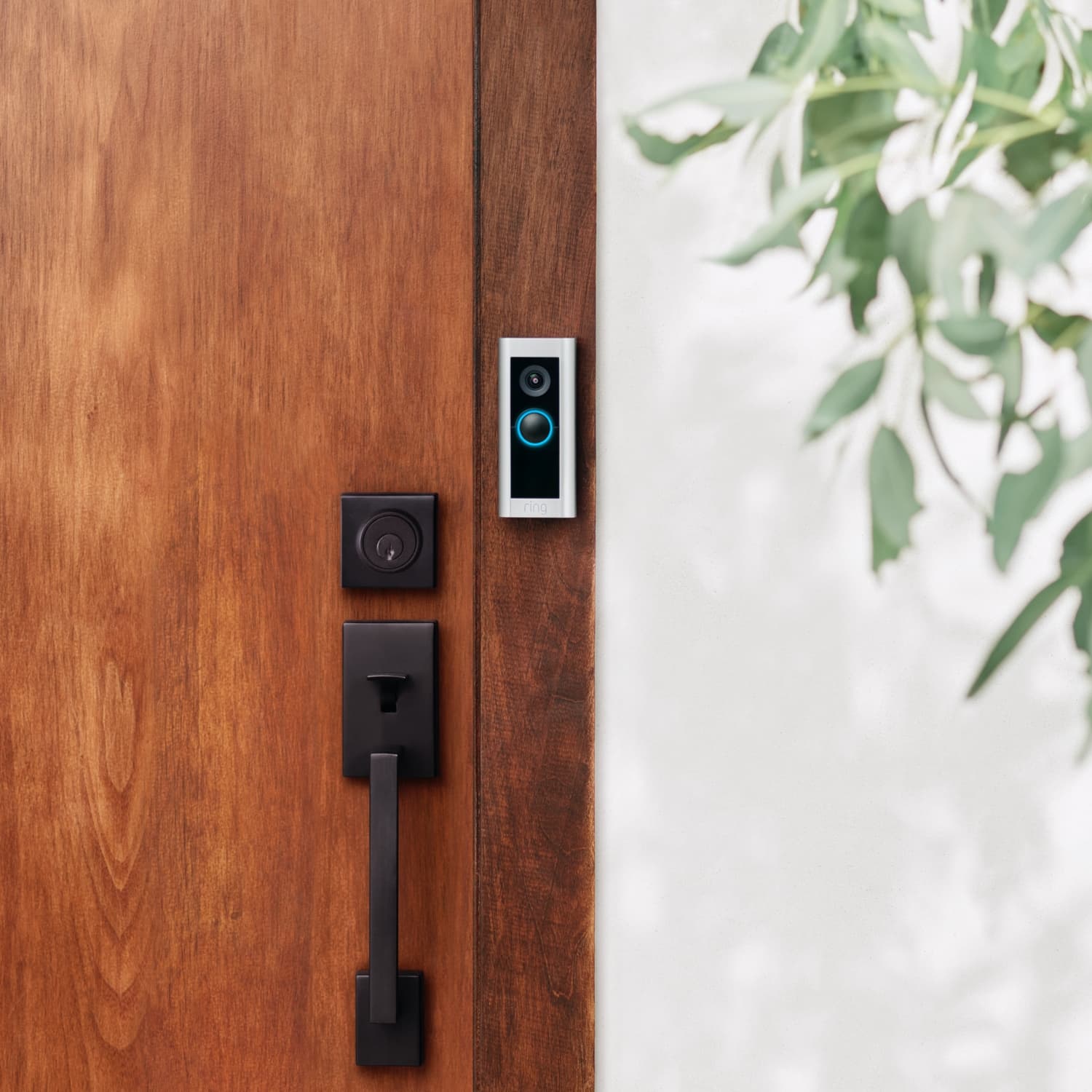

Tech Specs – Wired Doorbell Pro (Video Doorbell Pro 2)

Size and Color

Dimensions

4.49 in. x 1.9 in. x .87 in. (114mm x 49mm x 22mm)

Available Colors

Satin Nickel

Features

Video

1536p HD+ Live Video, HDR, Live View, Color Night Vision

Motion Detection

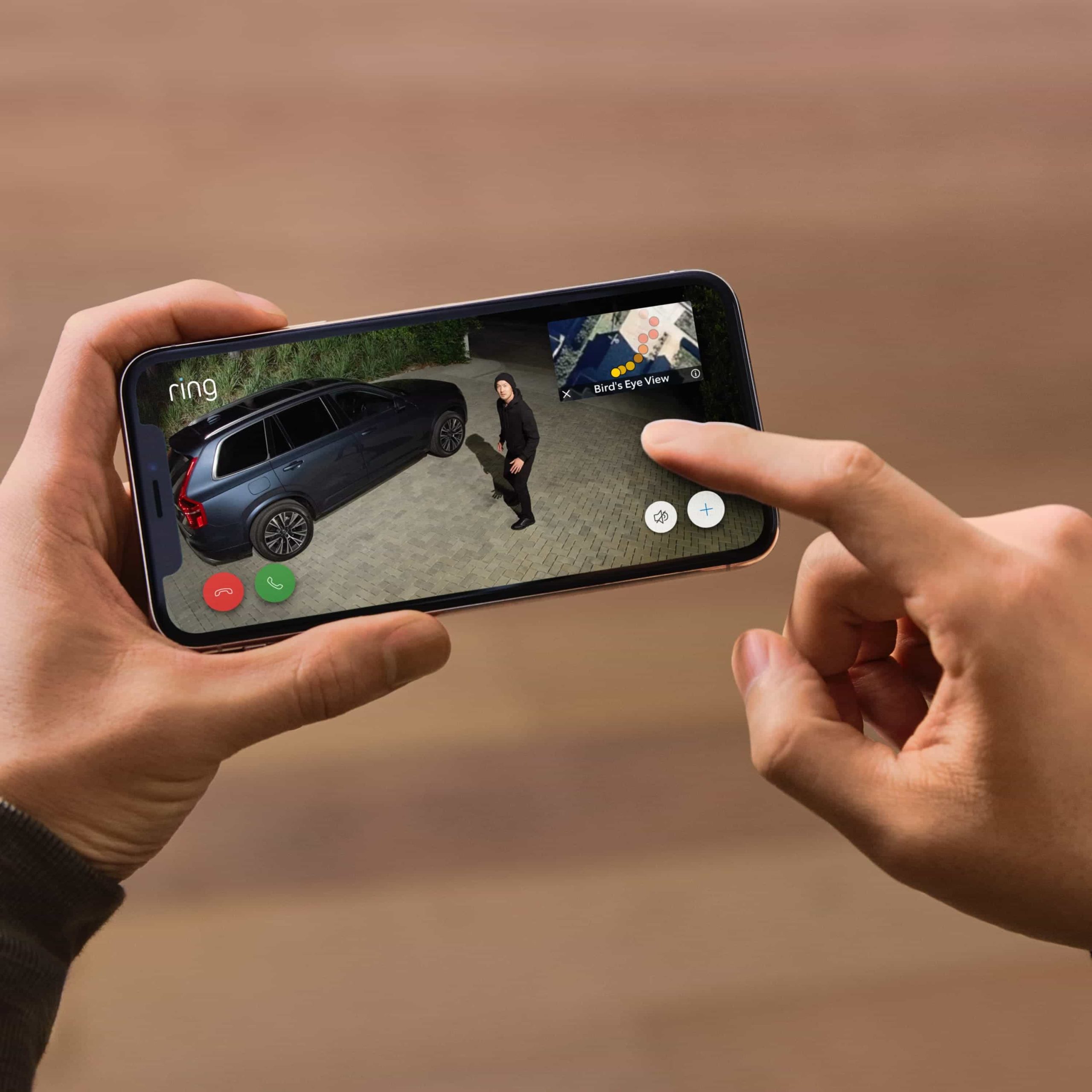

3D Motion Detection with Bird’s Eye View

Field of View

150° horizontal, 150° vertical

Audio

Two-Way Talk with Audio+

Power and Connectivity

Power

Hardwired
Standard doorbell system, Designer Brand plug-in adapter (not included), or Designer Brand hardwired transformer (not included) with 16-24 VAC/24VDC, 10-40VA max, 50/60Hz.
No halogen or garden-lighting transformers.

Internet Requirements

Requires a minimum upload speed of 1Mbps, but 2 Mbps is recommended for optimal performance

Connectivity

802.11 b/g/n wifi connection @2.4GHz and 5.0GHz

Installation

Estimated Installation Time

~15 min

Operating Conditions

-4°F to 120°F (-20°C to 48.5°C)

Setup Requirement

Standard doorbell system, Designer Brand plug-in adapter (not included), or Designer Brand hardwired transformer (not included) with 16-24 VAC/24VDC, 30-40VA max, 50/60Hz.

General

Box Includes

Wired Doorbell Pro (Video Doorbell Pro 2)
Satin Nickel Faceplate
Pro Power Kit
Installation Tools and Screws
Corner Kit
User Manual
Security Sticker

Warranty

One-year limited warranty

Security

Software Security Update

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Designer Brand device, visit Software Security Updates in Designer Brand Control Center for information specific to your device.
